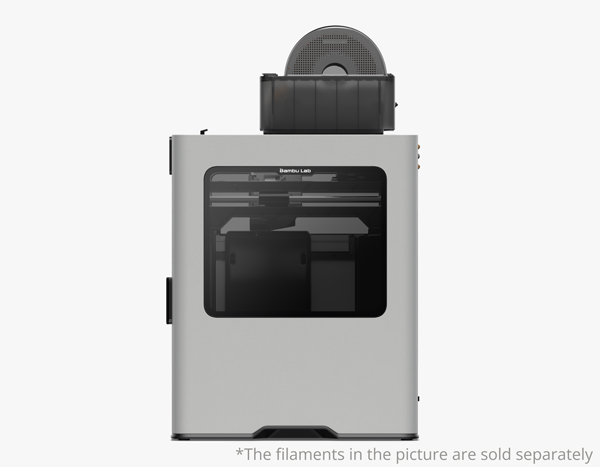

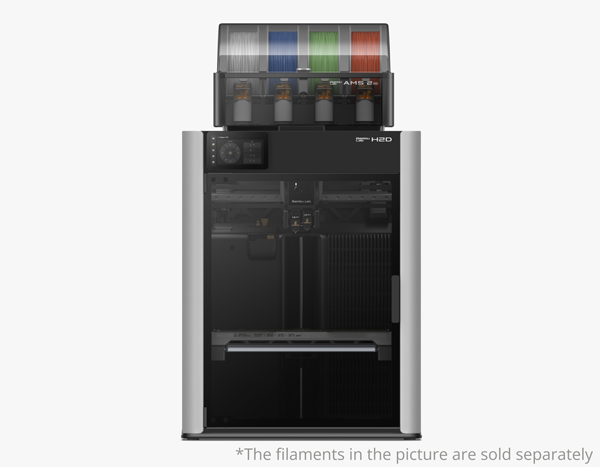

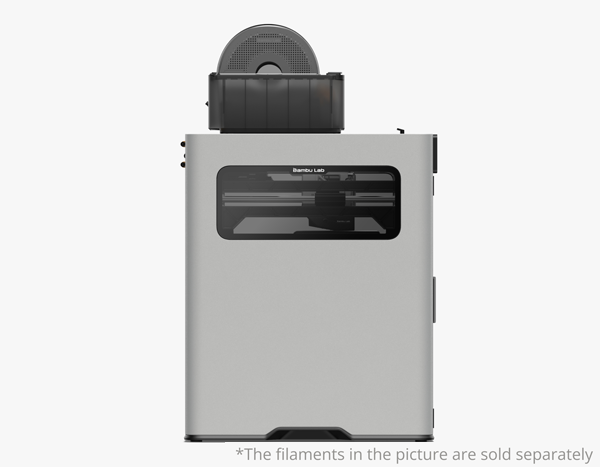

The New Bambu Labs H2D 3D Printer
Register your interest
 |
Out of the box to your first print in minutesUnbox, plug in, and print — the H2D is ready to go with full-auto calibration, dual-nozzle alignment, and smart filament management. It handles first-layer calibration, material detection, and even filament tangles with built-in sensors and recovery logic. |
|
Dual-nozzle precision and blazing speedPrint up to 1000 mm/s with a 40 mm³/s flow rate and accelerate at 20,000 mm/s². The H2D delivers unmatched productivity with minimal material waste thanks to optimized purge and toolpath logic. Hardened steel gears, AI extrusion control, and a TRUE high-flow hotend deliver speed without sacrificing quality. |
 |
|
 |
||
Intelligent sensing for precise extrusion controlBambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging. |
||
 |
Advanced Material CompatibilityEquipped with a 65°C actively heated chamber and hardened components, the H2D handles technical materials with ease — from flexible TPU to carbon fiber-reinforced filaments. Dedicated dual-nozzle printing allows full support material compatibility (PVA/BVOH), eliminating the need for compromise. |
|
 |
||
Peace of mind, every time you printPrior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan - Detects debris across the entire print surface. Hardware Configuration Audit - Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment - Automatically verifies consistency between detected hardware specifications and active slicer parameters. |
||
 |
Multi-Tool CapableLaser, Cutting, Drawing — All in One: Expand your H2D with modular add-ons like a 10W/40W laser engraver, precision cutting module, and pen plotter. Combined with spatial alignment cameras and air assist, you can cut, draw, engrave, and create with unmatched precision — all from one platform. |
|
 |
Break free from size constraintsWith a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even you most ambitious ideas to life. *350mm×320mm×325mm print volume is enabled by using identical filaments in both nozzles and print with both nozzles. |
|
Monitor extrusion at the nozzle tipThe H2D features an Al-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures. |
 |
|
 |
15 sensors on one filament pathUnlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry- leading filament behavior control system. |
|
Bambu Lab H2D Specifications
| Feature | Specification |
|---|---|
| Build Volume | 325×320×325 mm (Single Nozzle) 300×320×325 mm (Dual Nozzles) 350mm×320mm×325mm (Total Volume for 2 Nozzles: This print volume is enabled by using identical filaments in both nozzles and print with both nozzles) |
| Max Nozzle Temp | 350 °C |
| Max Heatbed Temp | 120 °C |
| Max Chamber Temp | 65 °C |
| Extruder | Hardened Steel Gear, Built-in Cutter, PMSM Motor |
| Nozzle | Hardened Steel, Sizes: 0.2 / 0.4 / 0.6 / 0.8 mm |
| Frame | Aluminum & Steel Chassis, Plastic & Glass Enclosure |
| Motion System | Dual Toolhead with Smart Calibration |
| First Layer Calibration | Fully Automatic |
| Filament Diameter | 1.75 mm |
| Supported Materials | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, CF/GF, PPS |
| Air Purification | HEPA H12, G3 Pre-filter, Carbon Filter |
| Wi-Fi | 2.4 / 5 GHz Supported |
| Ethernet | Not Available |
| Touchscreen | 5" 720×1280 |
| Software | Bambu Studio |
| Connectivity | Wi-Fi, USB |
| Remote Monitoring | Supported (Multiple Onboard Cameras) |
| Filament Sensors | Runout, Tangle, Odometry |
| Power Supply | 2200 W @ 220V |
| Weight | 31 kg |
| Printer Dimensions | 492 × 514 × 626 mm |
| Accessories | Build Plate, AMS 2 Pro, Laser/Cutting Modules (Optional) |
