Bambu Lab Ecosystem Comparison Guide | Imaginables Australia
A definitive technical engineering comparison matrix outlining the performance capabilities, thermal variables, toolhead styles, and multi-color waste outputs across the advanced Bambu Lab printer ecosystem.

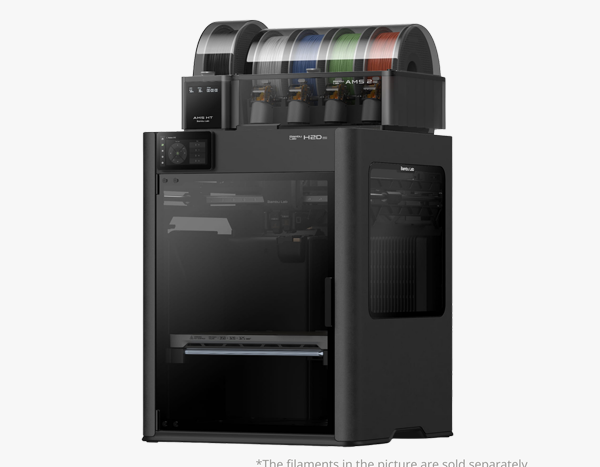

| Feature Matrix | X2D Combo | H2S Combo | H2D Combo | H2C Combo | H2D Pro Combo |
|---|---|---|---|---|---|
| Primary Focus | Prosumer Support / Multi-Material Print Optimization | Large Size & Structural Simplicity | Large Support / Dual Material Capability | Large Rapid Multi-Colour Processing | Enterprise Production & Industrial Manufacturing |
| Toolhead System | Dual Nozzle (Direct Main + Remote Aux) | Single Nozzle System | Dual Independent Nozzles (IDEX Architecture) | 1 Fixed + 6 Magnetic Swap (Vortek System) | Dual Independent Nozzles (IDEX Architecture) |
| Max Build Volume | 256 × 256 × 260 mm³ (Main Nozzle Space Capacity) | 340 × 320 × 340 mm³ Industrial Footprint | 325 × 320 × 325 mm³ (Single Nozzle Capability) | 330 × 320 × 325 mm³ Total Print Area | 325 × 320 × 325 mm³ High-Volume Frame |
| Nozzle Type | Hardened Steel (Tool-Free Quick Swap Assembly) | Hardened Steel Wear-Resistant Extruder | Hardened Steel Mechanical Assembly | Hardened Steel / Ceramic High-Flow Composite | Ultra-Abrasive Tungsten Carbide Material Core |
| Waste: 1 to 2 Colours | Minimal (Nozzle mechanical toggling, no color flush cycle) | High (Full filament color flush purge required) | Minimal (Nozzle prime tower only, no color flush cycle) | Minimal (Hotend prime tower only, no color flush cycle) | Minimal (Nozzle prime tower only, no color flush cycle) |
| Waste: 3 to 6 Colours | High (Must flush remaining colors through its 2 nozzles) | High (Full filament color flush purge required) | High (Must flush remaining colors through its 2 nozzles) | Minimal (Uses up to 6 dedicated hotends, avoiding color flushes) | High (Must flush remaining colors through its 2 nozzles) |
| Air Filtration | 3-Stage Safety System (G3 Pre-filter + H12 HEPA + Coconut Activated Carbon) | 3-Stage Safety System (G3 Pre-filter + H12 HEPA + Coconut Activated Carbon) | 3-Stage Safety System (G3 Pre-filter + H12 HEPA + Coconut Activated Carbon) | 3-Stage Safety System (G3 Pre-filter + H12 HEPA + Coconut Activated Carbon) | 3-Stage Safety System (G3 Pre-filter + H12 HEPA + Coconut Activated Carbon) |
| Network, Connectivity & Security | Wi-Fi / Bluetooth Wireless Profile (Standard Consumer Data Security) | Wi-Fi / Bluetooth / Local LAN Connection (Standard Consumer Data Security) | Wi-Fi / Bluetooth Wireless Profile (Standard Consumer Data Security) | Wi-Fi / Bluetooth Wireless Profile (Standard Consumer Data Security) | Wi-Fi / Dedicated Ethernet Port (WPA2-Enterprise Protocol & Hardware Killswitch) |
| Included Bundle | 3D Printer Unit + AMS 2 Pro Multi-Material Station | 3D Printer Unit + AMS 2 Pro Multi-Material Station | 3D Printer Unit + AMS 2 Pro Multi-Material Station | 3D Printer Unit + AMS 2 Pro Multi-Material Station | 3D Printer Unit + AMS 2 Pro + High-Temperature AMS HT Module |
| Australian Stock Logistics | Official Authorized Bambu Lab Equipment Stock in Australia | Distributed Locally via Imaginables with Australian Tax Invoices (Incl. GST) and Comprehensive Component Protection Warranties. | ||||
