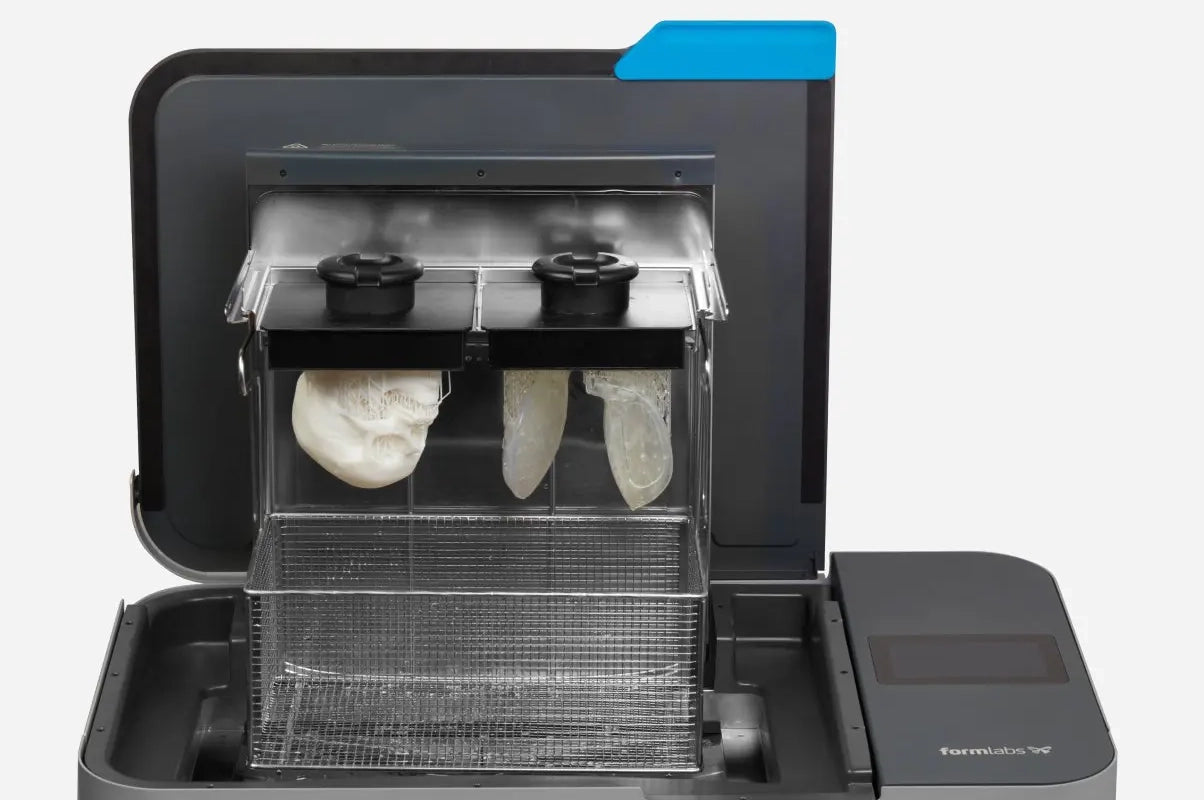

All SLA 3D printed parts require washing to remove residual resin. Form Wash L automates this process, leaving you with smooth, clean, high-quality parts every time.
Once washing completes, parts are lifted out of the solvent to air dry, avoiding over-soaked, warped prints. The embedded solvent monitor helps you maintain peak cleaning performance by notifying you when it’s time to replace your solvent.
Use Form Wash L with all of your Formlabs SLA 3D printers. Wash one Form 3L build platform or two Form 3 build platforms with the included build platform adapter.
Automate Cleaning With Form Wash L
Streamline your 3D printing process to help you produce high-quality large-scale parts with less time and effort.
|
| Improved Agitation |
Clean your parts thoroughly with 1.5x more agitation than the previous generation. |
| Adaptable to Build Platforms |
Seamlessly switch between build platforms with adjustable platform mounts, configurable at various heights and widths. |
| Compatible With All Formlabs Materials |
Select your material from a list and let Form Wash L auto-clean your parts for the appropriate time. |
| Informed Maintenance |
The embedded solvent monitor and cycle counter help you maintain peak cleaning performance by notifying you when it’s time to replace the solvent. |
|
Set It and Forget It
|
Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.
|
 |
Informed Maintenance
The embedded solvent monitor and cycle counter help you maintain peak cleaning performance by notifying you when it’s time to replace the solvent.
|
One Size Fits All
Wash one Form 4L Build Platform or two Form 3/B/+ or Form 4/B Build Platforms with adjustable platform mounts.
|
Technical Specifications
| Printer Compatibility |
Form 4L, Form 4BL, Form 4, Form 4B, Form 3L, Form 3BL, Form 3/+, Form 3B/+, Form 2 |
| Dimensions |
78.0 x 46.0 x 67.0 cm
Height when open: 113 cm |
| Weight |
56.7 kg (without solvent) |
| Bucket Volume |
37.9 L |
| Maximum Part Size |
35.3 x 20 x 29.6 cm |
| Suggested Operating Environment |
Suggested 18—28 °C |
| Agitation Method |
Magnetically coupled impeller |
| Included Accessories |
- Wash Bucket
- Wash Basket
- Electric Solvent Pump
- Flush Cutters
- Rinse Bottle
- Gloves
|
| Compatible Solvents |
- Formlabs Resin Washing Solution
- IPA
- TPM
- Water
|
