Intelligent Control Systems & Onboard Clinical Automation
Multiple internal control sensors continuously maintain hardware stability, tracking build variables in real-time:
-
Z-Axis Force Control: Continuously measures and counters layer peel forces to preserve fine anatomical appliance structures.
-
Thermal Viscosity Sensors: Internal conduction heaters matched with an infrared temperature sensor heat clinical liquid resins rapidly.
-
Mixer Debris Detection: Actively checks the resin tank for cured residue or foreign particles to immediately catch and prevent build failures.
-
Traceability Camera: Built-in 5-megapixel camera logs automated time-lapse historical images straight to your PreForm Dashboard workspace.
Build Volume
The Formlabs Form 4 3D printer has a build volume of 20.0 × 12.5 × 21.0 cm* and a capacity of 5.25 liters.
This is 30% larger than the Formlabs Form 3's build volume.
*If you are printing a job that is taller than 19.0 cm on Form 4/B, taller than 30.5 cm on Form 4L/4BL, or taller than 18.5 cm on Form 3/B/+, you have to remove the resin tank while removing your print. PreForm will warn users when their job is above these limits.
|
 |
Streamlined User Experience
|
Form 4 builds off the intuitive user experience of Form 3+. With Wi-Fi, ethernet, and USB connectivity, plus power switches, it’s easier than ever to control your printer no matter your business needs. Additional updates mean Form 4 is more autonomous and intelligent, freeing up user time for higher-value tasks.
Faster preprint times mean you can typically walk away from Form 4 less than a minute after starting. But, if a printer is ready, no printer interaction is necessary, simply send the print to the printer from your computer, and Form 4 will start printing automatically.
|
Powerful 3D Print Preparation Software
|
The full Formlabs ecosystem is designed to maximize efficiency and reduce the potential for print errors. Formlabs free print preparation software, PreForm, automatically analyzes the part and determines the optimal orientation and support placement. Formlabs software engineering team continuously improves software settings to ensure that print speed, materials settings, and automatic orientation and support are perfected.
|
Frequently Asked Questions about Formlabs Form 4
What is included in the Formlabs Form 4 Complete Package?

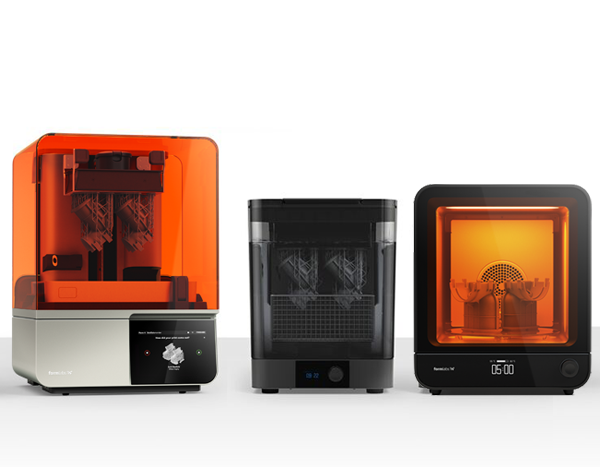

The Form 4 Complete Package includes the Form 4 masked SLA 3D printer, a 3-year Pro Service Plan (with accidental damage cover and express replacement), Form Wash (2nd Gen), Form Cure v2, a Resin Tank, a Flex Build Platform, a Resin Mixer, a Solvent Pump, and a Finish Kit.
How fast is the Formlabs Form 4 compared to previous models?
The Form 4 features a blazing fast Low Force Display™ (LFD) Print Engine. This technology uses a uniform area light projection system with 60 high-power LEDs to drastically reduce print times compared to the Form 3 engine.
Can I print biocompatible materials on the Form 4 Complete Package?
The standard Form 4 is optimized for industrial engineering and fast prototyping resins. If you need to print with biocompatible materials for medical or dental applications, please view the Formlabs Form 4B 3D Printer.
